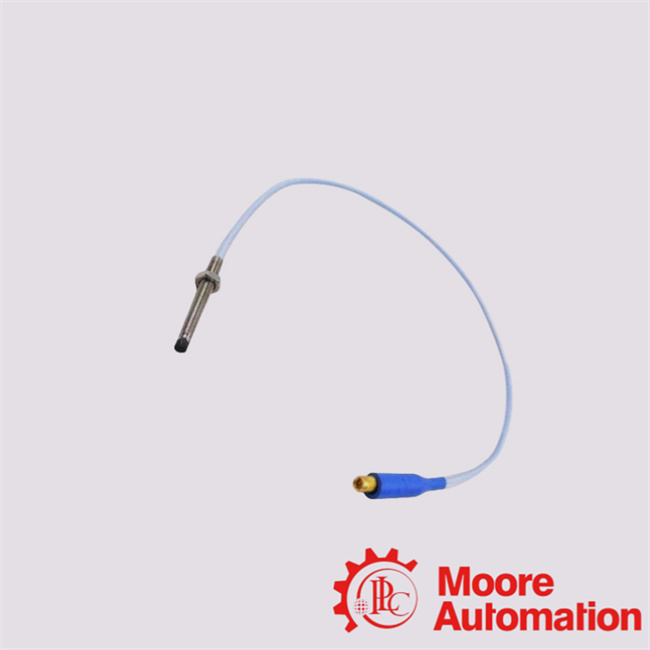

330901-10-20-10-02-05 Bently Nevada Proximity Probe
Description
The 330901-10-20-10-02-05 is an 8 mm probe within the 3300 XL NSv Proximity Transducer System. This system provides an output voltage directly proportional to the distance between
the probe tip and the observed conductive surface, enabling measurement of both static (position) and dynamic (vibration) values.
It is primarily used for vibration and position measurements on fluid-film bearing machines,
as well as Keyphasor reference and speed measurements.
330901-10-20-10-02-05 Details
|
FAQ
|
|
Q1: What is the typical application of the 330901-10-20-10-02-05 probe?
The probe is used for vibration and position measurements on fluid-film bearing machines and
for Keyphasor reference and speed measurements.
|
|
Q2: Is the 330901-10-20-10-02-05 probe compatible with other 3300 series components?
Yes, the 3300 XL 8 mm components are electrically and physically interchangeable with non-XL 3300 5 mm and 8 mm components.
However, mixing XL and non-XL components limits system performance to the
specifications for the non-XL 3300 series.
|
|
Q3: Can the 330901-10-20-10-02-05 probe be used in high-density installations?
Yes, the 3300 XL Proximitor Sensor features a thin design, allowing it to be mounted in high-density
DIN-rail installations or traditional panel mount configurations.
|
|
Q4: What is the recommended gap setting for the 330901-10-20-10-02-05 probe?
The recommended gap setting is 1.27 mm (50 mils) for optimal performance.
|
