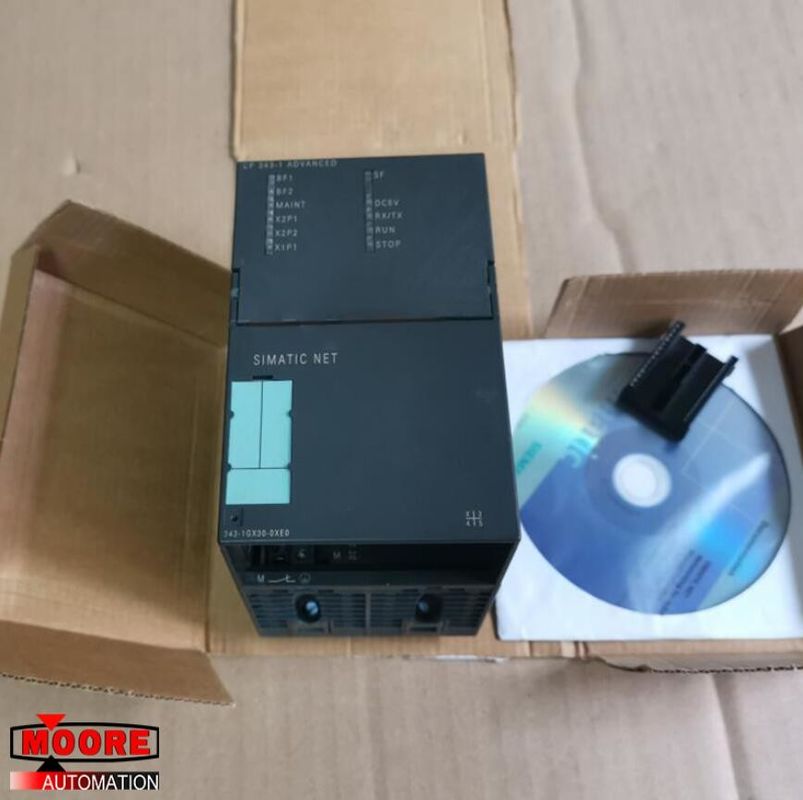

Marke/Hersteller | Siemens/GERMANY |
Teilnummer | 6GK7343-1GX30-0XE0 |
Abwechselnde Teilnummer | 6GK7343-1GX30-0XE0 |
Beschreibung | Industrielles Ethernet Netz CPs |
Dimennsions | WHD 40* 125*120mm |
Gewicht | 0.22kg |
Produkt-Details
COMMUNIKATIONSPROCESSOR CP343-1 FÜR DIE VERBINDUNG VON SIMATIC S7-300 AN IND. ETHERNET ÜBER ISO UND TCP/IP, PROFINET IO-CONTROLLER ODER PROFINET IO-DEVICE, INTEGRALER 2-PORT SCHALTER ERTEC200 S7-COMM., FETCH/WRITE, SEND/RCV W. AND W/O RFC1006, MULTICAST-DHCP, NTC-CPU SYNCHRONISIERUNG, DIAGNOSE, INITIALISIERUNG ÜBER LAN, 2 X RJ45 SCHLIESSEN an. FÜR LAN MIT 10/100 MBIT/S.
Übertragungsrate/auf die Schnittstelle 1 10… 100 Mbit/s
Schnittstellen:
Zahl von elektrischen Verbindungen:
an Schnittstelle 1/in Übereinstimmung mit industriellem Ethernet 2
für Stromversorgung 1
Leistungsdaten/offene Kommunikation:
Zahl von möglichen Verbindungen/für offene Kommunikation/mittels der SEND/RECEIVE Blöcke/Maximum 16
Datenvolumen:
als Benutzerdaten pro ISO-Verbindung/für offene Kommunikation/bymeans von SEND/RECEIVE Blöcken/maximum8 Kibyte
als Benutzerdaten pro ISO auf TCP-Verbindung/für opencommunication/mittels der SEND/RECEIVE Blöcke /maximum 8 Kibyte
als Benutzerdaten pro TCP-Verbindung/für offene Kommunikation/mittels der SEND/RECEIVE Blöcke/Maximum 8 Kibyte
als Benutzerdaten pro UDP-Verbindung/für offene IE-Kommunikation/mittels der SEND/RECEIVE Blöcke/Maximum 2 Kibyte
Zahl von multicaststationen 16
Leistungskommunikation Daten/S7:
Zahl von möglichen Verbindungen/für Kommunikation S7: Maximum 16
Leistungsdaten/Mehrprotokollmodus: Zahl von aktiven Verbindungen/mit Mehrprotokollmodus 32
Kommunikation der Leistungsdaten/PROFINET/als PN IOController:
Zahl von PN-IO-Geräten/auf PROFINET-IO-Prüfer/verwendbar/Summe 32
Menge Daten
als nützliche Daten für Inputvariablen/als Prüfer PROFINET IO/Maximum 1 Kibyte
als nützliche Daten für Inputvariablen/mit Prüfer PROFINET IO/Maximum 1 Kibyte
als nützliche Daten für Inputvariablen pro Gerät PN IO/mit Prüfer PROFINET IO/Byte des Maximums 240
als nützliche Daten für Zustandsgrößen pro Gerät PN IO/mit Prüfer PROFINET IO/Byte des Maximums 240
als Benutzerdaten für Inputvariable pro Gerät PN IO/pro Abschnitt als Prüfer PROFINET IO/Byte des Maximums 240
als Benutzerdaten für Zustandsgrößen pro Gerät PN IO/pro Abschnitt als Prüfer PROFINET IO/Byte des Maximums 240
