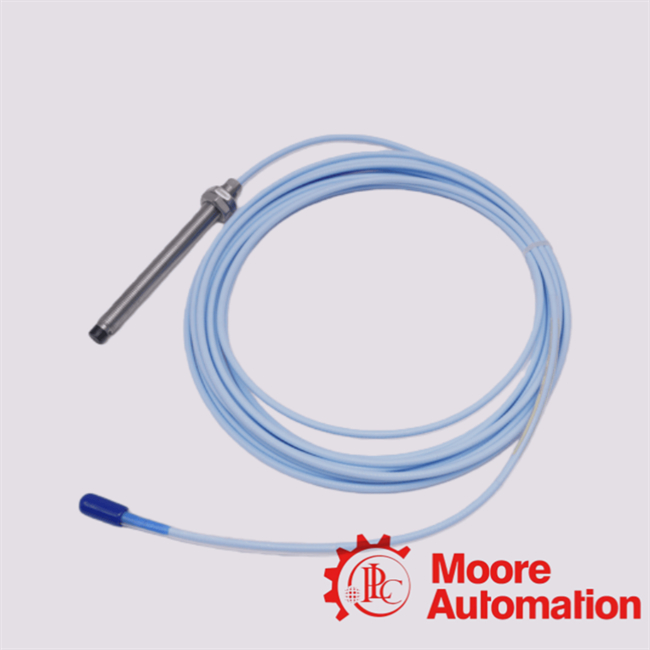

330103-00-10-50-02-00 Bently Nevada Proximity Probes
Description
The 330103-00-10-50-02-00 is a version of Bently Nevada’s 8 mm eddy-current proximity probe system (3300 XL series). The “330103” model identifier specifically means:The “8 mm probe” type with armour (i.e., a version
that includes armored probe/cable assembly).The “-00” after that indicates an unthreaded length option of 0 mm (i.e., standard thread length).“-10” is the Overall Case Length Option (in the code this typically means
something like 1.0 in or some specific case size—though code lists vary).“-50” is the Total Length Option—for example, in this part code “50” often means 5.0 m (16.4 ft) total length of probe + cable. (In nearby
part codes the “50” suffix is used for 5.0 m length)“-02” is the Connector & Cable‐Type Option (“02 = miniature coaxial ClickLoc™ connector, standard cable”)“-00” at the end is
the Agency Approval Option (“00 = not required”) per the datasheet.
|
FAQ
|
|
Q1: What does the “330103” model number mean relative to other 3300 XL probes?
A: The prefix “330103” identifies the variant of the 8 mm probe with armour included (as opposed to “330101” which is without armour). So “330103” = 8 mm, armour. The suffix options then define length, case size, cable type, approvals, etc.
|
|
Q2: What is the significance of “-50” in the part number?
A: It indicates the Total Length Option (the combined length of probe + cable). For example, in many listings “50” = 5.0 metres (16.4 ft).
So your part likely has a total length of ~5 m.
|
|
Q3: Can I use this probe with a shorter or longer cable than specified?
A: Yes, the 3300 XL system is designed for interchangeability of probes, extension cables, and sensor modules. However,
when you use a non-standard length, make sure you maintain the specified cable characteristics (75 Ω triaxial,
correct impedance), and verify signal integrity. If you lengthen too much, you may risk degraded
performance (loss of bandwidth, increased noise). The datasheet states compatibility but
also warns that system performance and accuracy are defined for
specified lengths and components.
|
